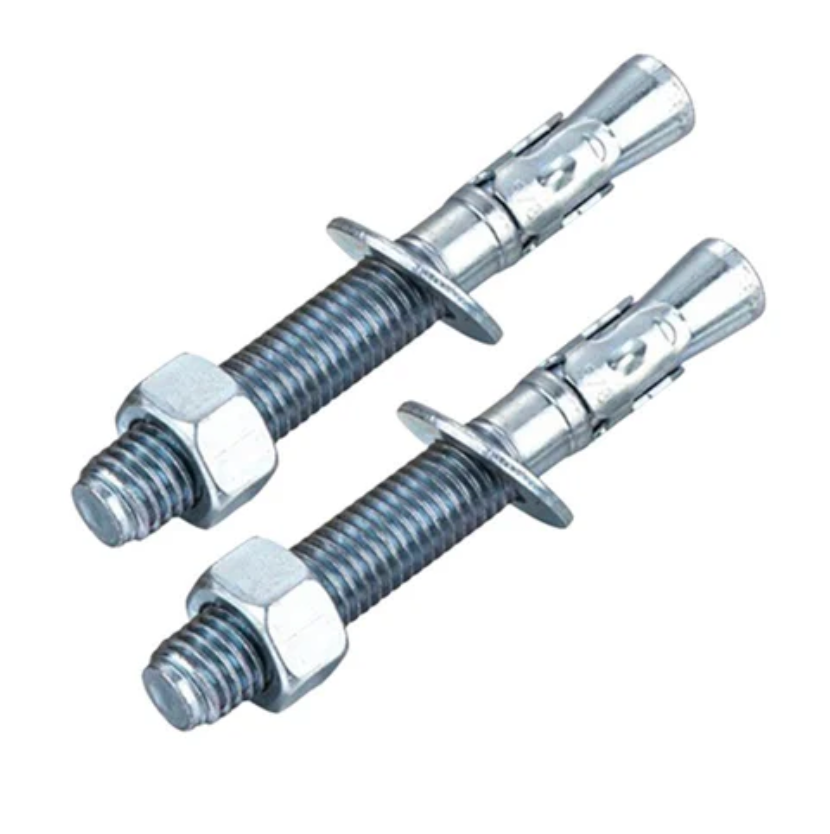

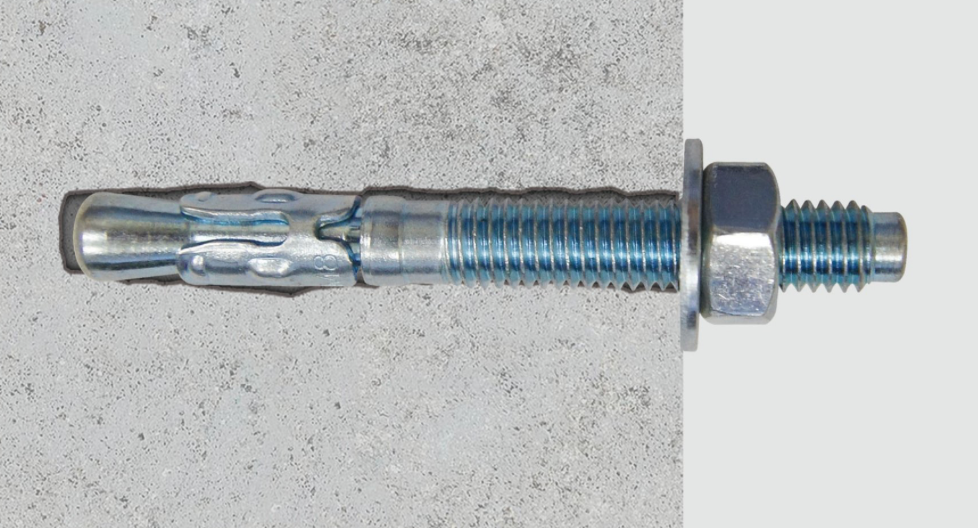

Through Bolt
Through Bolt
The versatile FERRY through fixing for use in a wide range of applications in concrete with a minimum strength of 20 N/mm2.
Key Features :
1. Optimum cone angle for controlled expansion.
2. Dimensional accuracy.
3. Innovative design of expander with external grip feature provides secure fixing into concrete.
Request Callback
Order In Bulk
100% ORIGINAL
Products
SECURE
Payments
100% BUYER
Protection
Description
Available Sizes:
Size (Hole in Concrete) (mm) | Bolt Length (mm) | Thread Length (mm) | Hole diameter in Fixture (mm) | Minimum substrate thickness (mm) | Recommended torque (Nm) |
M6 |
|
|
|
|
|
M8 | 50 | 14 | 9 | 100 | 15 |
M8 | 65 | 25 | 9 | 100 | 15 |
M8 | 80 | 40 | 9 | 100 | 15 |
M8 | 115 | 65 | 9 | 100 | 15 |
M10 | 65 | 22 | 11 | 100 | 25 |
M10 | 80 | 30 | 11 | 100 | 25 |
M10 | 95 | 46 | 11 | 100 | 25 |
M10 | 115 | 65 | 11 | 100 | 25 |
M10 | 130 | 80 | 11 | 100 | 25 |
M12 | 80 | 30 | 13 | 100 | 45 |
M12 | 100 | 40 | 13 | 100 | 45 |
M12 | 120 | 60 | 13 | 100 | 45 |
M12 | 135 | 75 | 13 | 100 | 45 |
M12 | 150 | 90 | 13 | 100 | 45 |
M16 | 105 | 55 | 18 | 130 | 110 |
M16 | 140 | 60 | 18 | 130 | 110 |
M16 | 180 | 100 | 18 | 130 | 110 |
M16 | 220 | 140 | 18 | 130 | 110 |
M20 | 125 | 65 | 22 | 160 | 180 |
M20 | 160 | 65 | 22 | 160 | 180 |
M20 | 200 | 100 | 22 | 160 | 180 |
M20 | 300 | 100 | 22 | 160 | 180 |
NOTE: Measurements are subject to tolerances wherever applicable.
